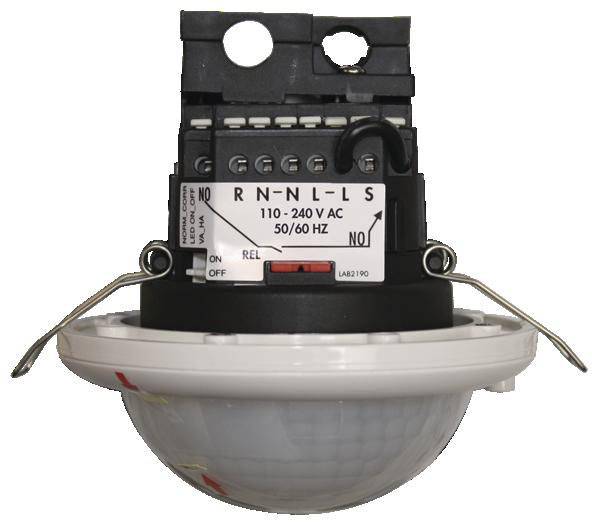

Product: PD4-M-1C-K-i (92586) Presence motion detector LUXOMAT® PD4-M-1C-K-i recessed ceiling
with narrow detection area specially for corridors. Powerful relay for ignition of lamps with
high consumption. In particular an optical system for detecting the slightest movements.
Series production impulse function Application examples: monitoring of long corridors etc.
Power supply voltage: 230V ~ ± 10% Detection: 360 ° Range (around) m: - sitting Ø 6.40 m -
across Ø 24.00 m - head Ø 8 00 m Protection class: IP20 Class II CE Dimensions: Ø 97 x H
103 mm. Ambient temperature: -25 ° C to + 50 ° C Housing: UV-resistant High-quality
polycarbonate Channel 1 (light control) Max load: 2300 W power factor measure = 1 1150 VA
power factor measure = 0.5 Time settings: 15 sec. - 30 min. or pulsed. Brightness Value:
10-2000 Lux. Power consumption:> 0.5W
