EAN: 4007529921423

PD4-S-AP-RAL9010 PD4-S-AP-RAL9010 4007529921423

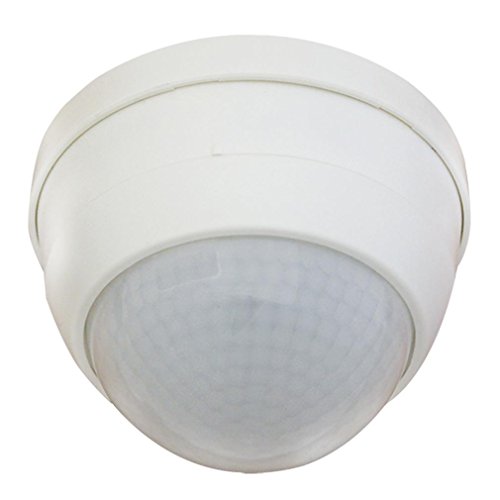

Product: PD4-S-P (92142) Presence detector LUXOMAT® PD4-S  Slave and the range for mounting in
fixed ceiling or PL can. Large energy savings potential especially in large spaces and in
monitoring of large surfaces. It requires only a Master of ignition of light and ventilation.
Possibility of detection of movement in all local segments with slaves pulse signal to the
Master of detected movement. Detection of movement independent of the ambient brightness.
Application examples: monitoring of large redundant surfaces  for example. parking garages
gyms  warehouses  loading ramps  halls etc. Power supply voltage: 230V ~ ± 10%. Detection
range: 360 °. Range (around) m: - sitting Ø 6.40 m - across Ø 24.00 m - head Ø 8.00 m
Protection: IP20   Class II   CE. Dimensions: Ø 97 x H 103 mm. Ambient temperature: -25 ° C to
+ 50 ° C Housing: UV-resistant polycarbonate high-quality. Pulse function: Pulse spacing 2 sec.
or 9 sec. Slave output Slave device: 230 V. Power consumption:> 0.5W.
