EAN: 4007529925858

BEG BRÜCK 92585 UNTERPUTZ PRÄSENZMELDER 360 ° R...

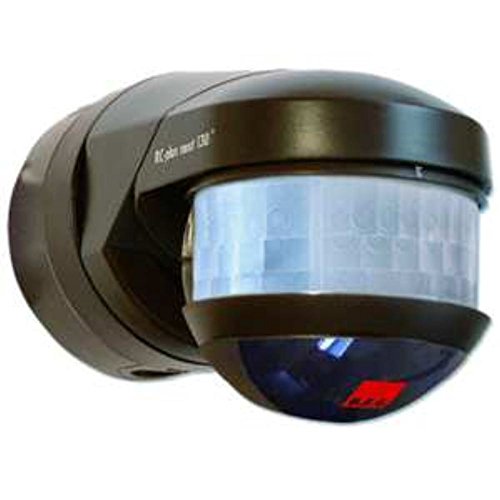

Product: PD4-M-1C-i (92585) Presence   motion detector LUXOMAT® PD4-M-1C as Master version for
wall mounting  recessed ceiling and wall. Thick relay for ignition of lamps with high
consumption especially optical system for detecting the smallest movements. You can connect an
unlimited number of slaves for cheap extension of the detection area! Series production impulse
function. Application examples: monitoring of large surfaces such. parking garages  gyms
warehouses  loading ramps  halls etc. Power supply voltage: 230V ~ ± 10%. Detection range: 360
° Range (around) m: - sitting Ø 6.40 m - across Ø 24.00 m - head Ø 8.00 m Protection: IP20
Class II   CE. Dimensions: Ø 97 x H 103 mm. Ambient temperature: -25 ° C to + 50 ° C. Housing:
UV-resistant polycarbonate high-quality. Channel 1 (light control) Max Load: 2300 W  power
factor measure = 1  1150 VA  power factor measure = 0.5. Time settings: 15 sec. - 30 min. or
pulse Brightness Value: 10-2000 Lux. Power consumption:> 0.5W.
