EAN: 4015211281533

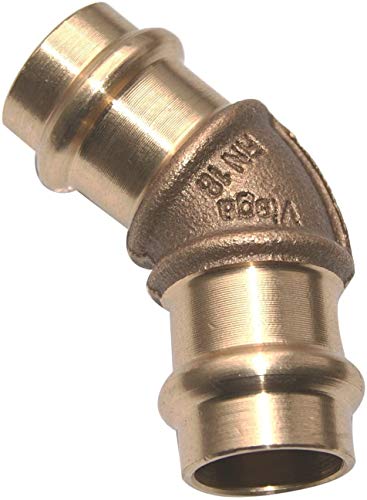

VIEGA SANPRESS BEND 45° 18 GUNMETAL GLOSSY 281533

Press connector system with press connectors made of gunmetal  pipes made of stainless steel
material Nos. 1.4401 and 1.4521 in acc. with DINEN 10088  DIN EN 10312  DVGW worksheet GW 541
system certification for connectors and pipes in acc. with DVGW worksheet W 534  for drinking
water installations in acc. with DIN 1988. For dimensionally stable concealed and pre-wall
installations of manifold and riser pipes in Viega component assembly.Press connectorsAll sizes
with SC-Contur - connections  which remain unpressed become visible when the system is filled.
The SC-Contur is certified and fulfils the requirements of DVGW worksheet W 534  point 12.14
connectors with forced leakage.During leakage tests with water  Viega guarantees the
identification of unpressed connections in the pressure range 0.1 MPa-0.65 MPa  in the case of
a dry leakage test with compressed air or noble gases from 22 hPa-0.3 MPa.MarkingGreen dot on
the press connectionSealing elementsEPDM  black (ethylene-
