Technische Daten:-Regelbare SAT-Eingä nge optimaler Betrieb mit Quattro LNB -Quad
LNB tauglich-Lieferung mit Anleitung- Automatischer Abschalter der LNB-Spannung Kurzschluß

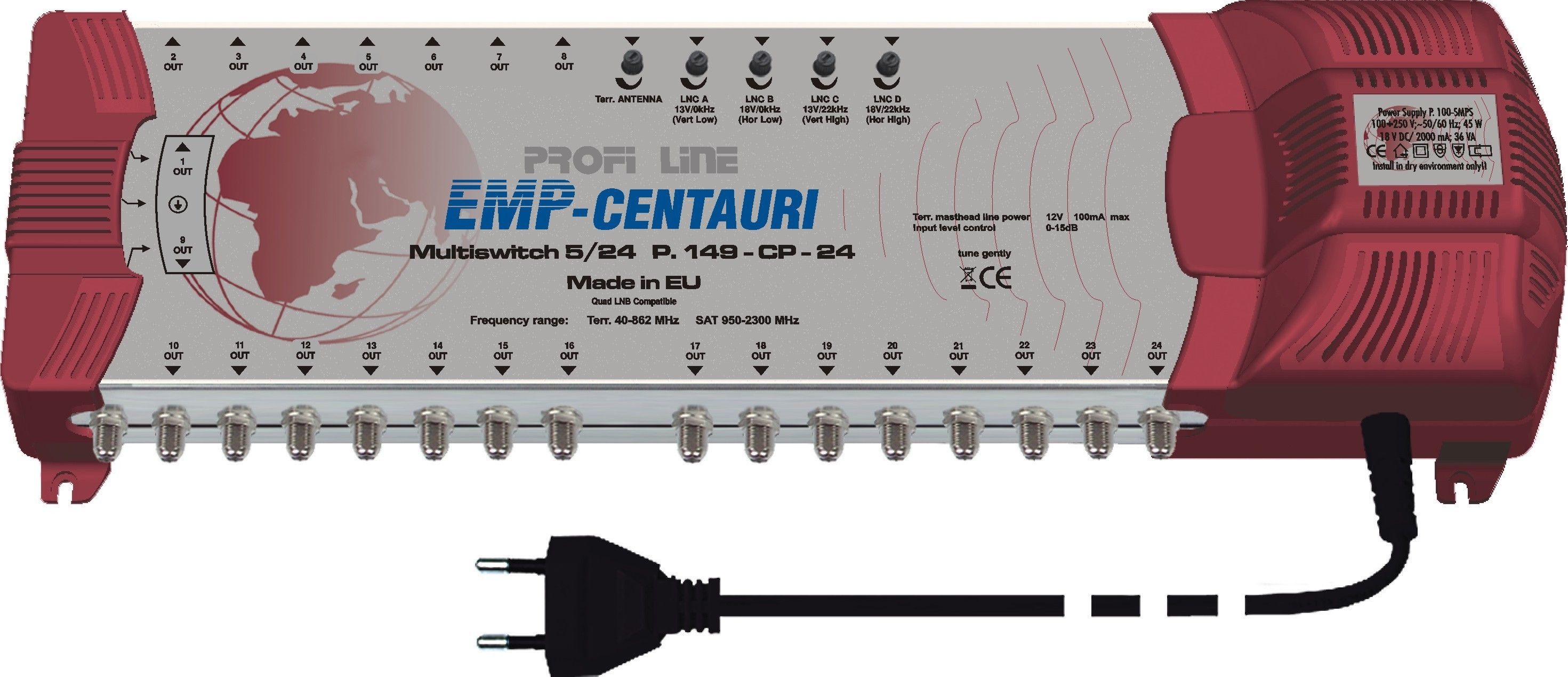

sicherung- Garantie: 4 JahreSpecifications of MS 5 24 PIU-6:-Frequency Range- LNB-Inputs
950-2300 MHz- Terr. Input: 5-862 MHz (passive) 40-862 MHz (active)- Outputs: 5-2300 MHz
(passive) 40-2300 MHz (active)-Control 10-14.5 15.5-20 V + 0 22 kHz-Insertion Loss Gain:-
950-2300 MHz 3 dB avg.- 40-862 MHz (active) 2 dB gain- 5-862 MHz (passive) 19 dB loss-SAT
Inputs Isolation: 20 dB min.-Maximum Input Level*- Sat 101 dBµ V- Terr. 110 dBµ V
(passive) 93 dBµ V (active)-Power Consumption (incl. connected LNBs): 2 VA max.-LNB Power
Supply: 600 mA max.-Dimensions (w d h [cm]) 26.5 x 14.5 x 8.7-Temperature range ?30 ° C -
+70 ° C
