BJ 64764 UJ-84 BW 180 flex Set Multi 4011395295298

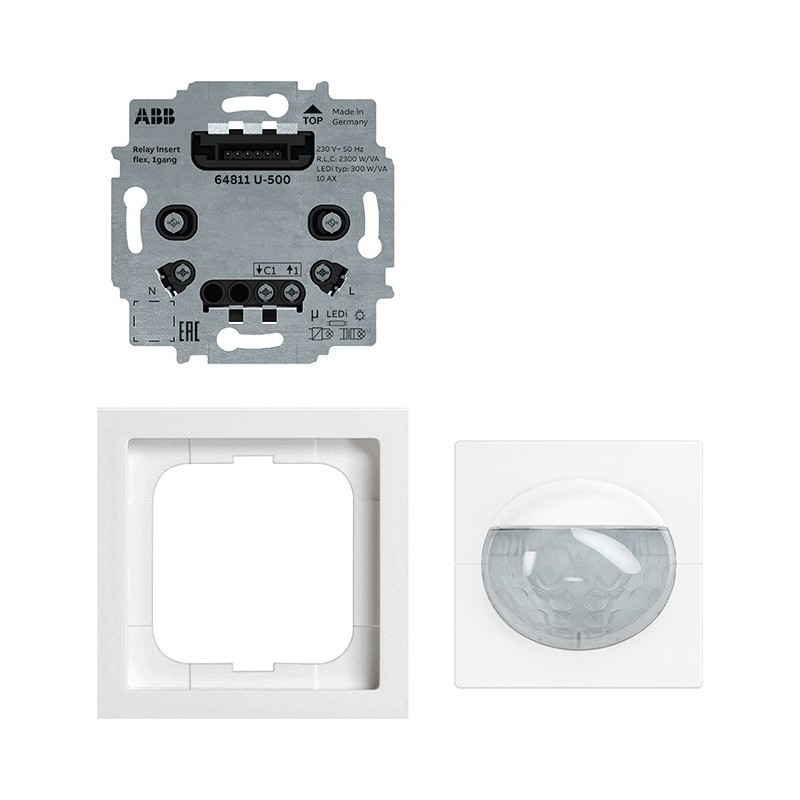

Functions at a glance Ready-to-install movement detector for flush-mounted installation (set packaged). Consisting of Busch-Watchdog 180 flex comfort sensor with multi-lens 64764-84. Consisting of relay insert flex 1gang 64811 U. Consisting of future®linear cover frames 1gang 1721-184K. Rated voltage: 230 V +10 % -10 % Rated frequency: 50 Hz Power dissipation: 0.3 W Outputs: 1 Normally open contact potential-bound suitable for: 230 V- LEDi typical. Rated output: 300 VA suitable for: 230 V incandescent lamps 230 V halogen lamps Rated output: 2300 W suitable for: Fluorescent lamps Rated output: 2300 VA Rated current: 10 AX cos ?0.9 Temperature range (device): -5 °C - 45 °C Storage temperature range: -20 °C - 70 °C Detection range: frontal: 8 m lateral: 7 m at mounting height: 1.1 m Detection range 2: frontal: 8 m lateral: 8 m at mounting height: 2.2 m Brightness limit value: 5 Lux - Up to daytime operation Detection angle: 180 ° Dimensions: (L x W x D): 80 mm x 80 mm x 57 mm Mounting depth: 25 mm Mounting height: 0.8 m - 1.2 m alternatively: 2.2 m The range specifications refer only to an ambient temperature of 21°C. Only in conjunction with standard flush-mounting boxes according to DIN 49073 erect or Busch-Jaeger No. 3040 wallbox stonework 3050 wallbox cavity wall or 3060 wallbox concrete) RAL colour number: Ähnlich 9016Busch-Jaeger 1751-72 BUSCH-JAEGER BJ 64764 UJ-84 BW 180 flex Set Multi 4011395295298
