Raumtemperaturregler Set Typ 1098 UJ-914 mit digitaler Wochenuhr und Schaltkontakt Heizungsthermostat

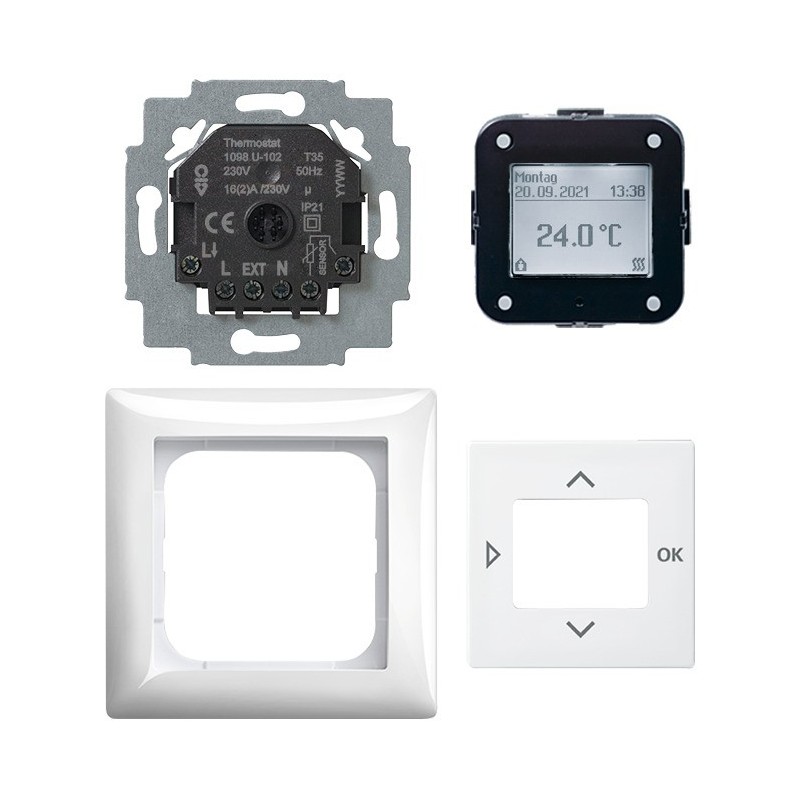

Functions at a glance Consisting of room temperature controller 1098 U-102. Consisting of Busch-balance SI cover frame 1gang 1721-914. Consisting of the Busch-balance cover plate for timer control element 6435-914. For floor heating. Switch contact non-floating - opens when the set temperature is reached. Easy adjustment via illuminated menu and text-based display. Up to 4 switching times per day can be freely adjusted for each day of the week. Changeover of setpoint actual temperature display possible. With screw-type terminal. Adjustable automatic summer wintertime switch-over. Power reser ve &gt 10 years Class of temperature controller: IV Contribution to room heating efficiency: 2.0%. Rated voltage: 230 V Rated current: 16 A Temperature range (device): 5 °C - 30 °C Dimensions: (L x W x D): 71 mm x 71 mm x 38 mm Only in conjunction with standard flush-mounting boxes according to DIN 49073 erect or Busch-Jaeger No. 3040 wallbox stonework 3050 wallbox cavity wall or 3060 wallbox concrete) Servo-valves closed when de-energized are necessary for connection to thermostat. e.g. Article No. 6164 10- see KNX chapter.Busch-Jaeger 1746 10-72 BUSCH-JAEGER 2CKA001032A0522 Busch Jaeger Raumtemperaturregler Set 1098 UJ-914 2CKA001032A0522 4011395310991
