BJ SBC-F-10011-84 RTR IAQ 10fach weiß 4011395314821

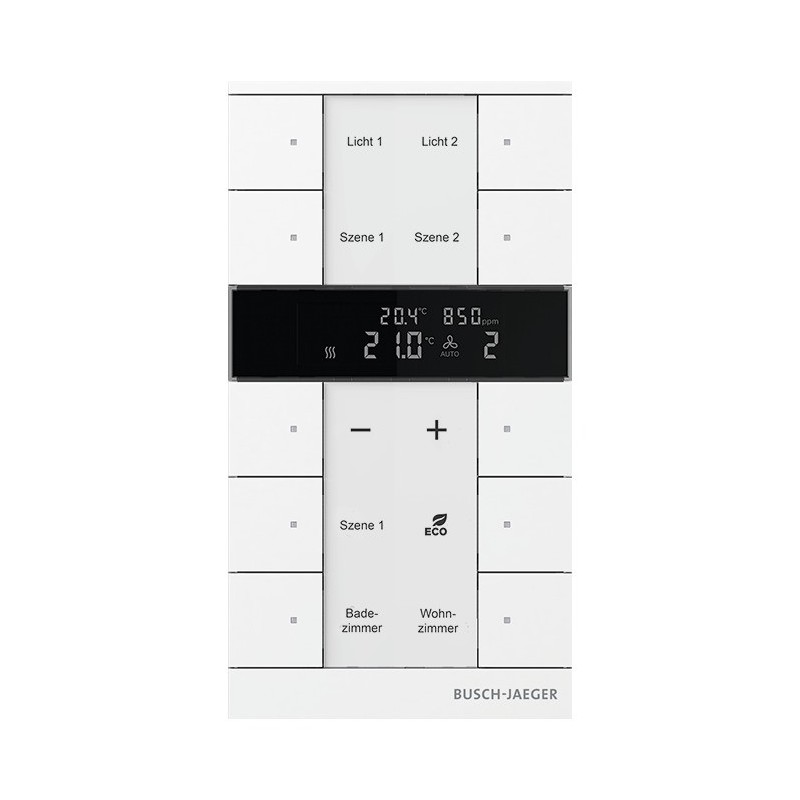

Functions at a glance Bedienelement mit Raumtemperaturreglerfunktion und VOC- Feuchtesensor With integrated free@home bus connection. With labelling field. With integrated room temperature controller and temperature sensor. Push switch function: switching dimming blind sending values scenes etc. For activating heating ventilation and fan coil actuators. Master slave configuration. The fan stage can be switched manually or in automatic mode. Class of temperature controller 1 Contribution to space heating energy efficiency 1 0%. Spannungsversorgung über Bus-Klemmen (a b). Number of bus subscribers: 2 Control element: rocker switch left right Display elements: Display of operating mode temperature fan coil level humidity value CO2 value time or date via LCD Protection class (device): IP 20 Temperature range (device): -5 °C - 45 °C Storage temperature range: -25 °C - 55 °C Transport temperature range: -25 °C - 70 °C Dimensions: (L x W x D): 167.1 mm x 90.1 mm x 13.5 mm As required you can find the programmable functions in the current application description which you can download in the Support Centre on our Internet page. For compatible lettering software visit www.BUSCH-JAEGER-labelingtool.com. RAL colour number: Ähnlich 9016 Lieferbar ab November 2022Busch-Jaeger CT S2.11 BUSCH-JAEGER BJ SBC-F-10.0.11-84 RTR IAQ 10fach weiß 4011395314821
